| General Info | |

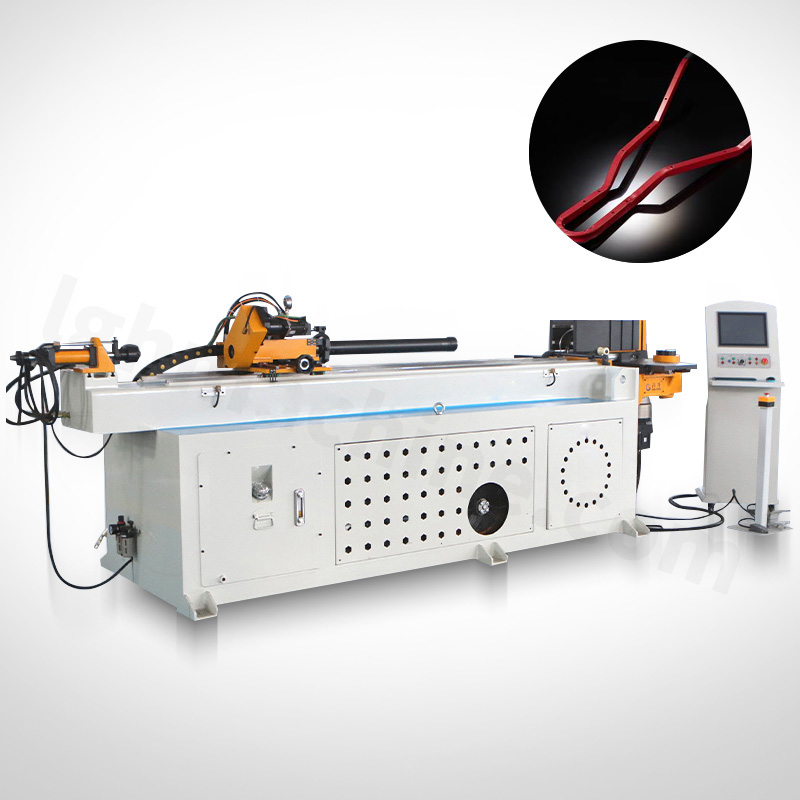

| Name: | CNC Tube Bender |
| Series: | SB CNC-L /R |
| Type: | SB18CNC3A1S-L/R |
| Drive mode: | Hydraulic + Servo |
| Power of turning: | 0.4Kw |
| Power of feeding: | 1.5Kw |
| Power of motor: | 2.5Kw |
| Machine weight: | ≈ 800 Kg |
| Machine size: L*W*H | 2200*800*1200 mm |
| Capacity | |
| Max OD: | ∅18*2mm |
| Max radius of bending: | 120mm |
| Max angle of bending: | 190° |
| Max bends on tube: | 30pc |
| Bending speed: | 0-30r/min |
| Rotation speed: | 0-45r/min |
| Feeding speed: | 0-800 mm/s |
| Feeding mode: | Clamping |
| Max feeding: | 2000mm |
| Bending accuracy: | ±0.10 |
| Rotation accuracy: | ±0.10 |
| Feeding accuracy: | ±0.1mm |
