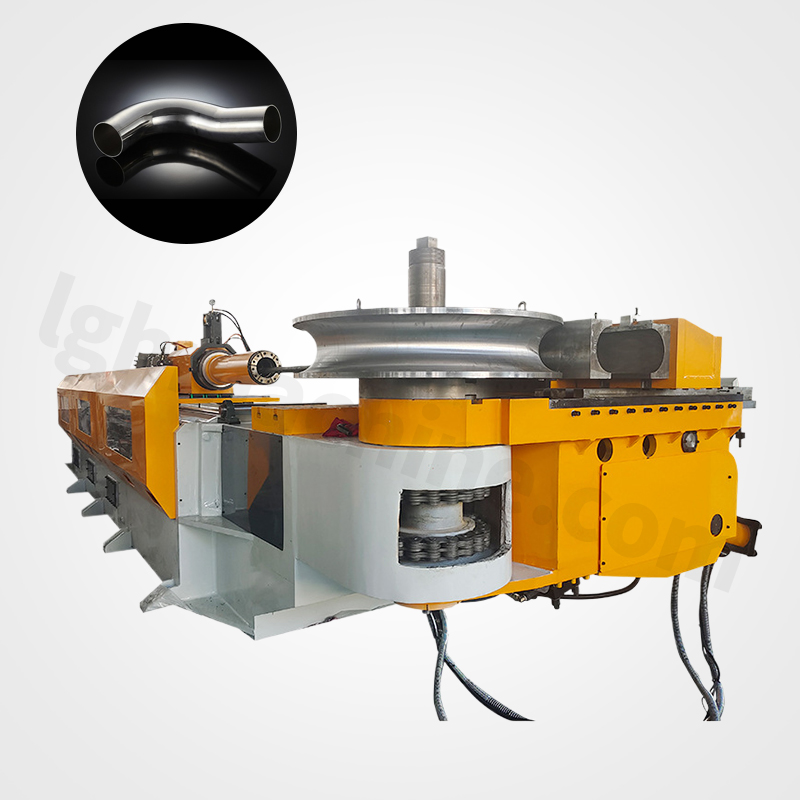

CNC pipe bending machine is a kind of high-precision and high-efficiency automatic processing equipment, which is widely used in automobile, aviation, furniture, pipeline engineering and other fields. Its core features are as follows:
---
1. High precision and repeatability
Precision control: The use of numerical control system (such as CNC) and servo motor drive, can achieve accurate control of Angle, bending radius, feeding length (accuracy up to ±0.1°).
Repeated positioning: high consistency can be maintained during batch processing, suitable for mass production.
---
2. Versatility and complex processing
Multi-axis linkage: Support 3-axis, 4-axis and even 6-axis linkage, can complete three-dimensional space complex bending pipe (such as spiral pipe, S-shaped pipe).
A variety of mold adaptation: by replacing the mold (bending mold, clamping mold, etc.) to adapt to the processing needs of different pipe diameters (usually covering Φ3mm~Φ200mm) and materials (metal, plastic, etc.).
---
3. Efficient automation
Automatic operation: Integrated automatic feeding, rotation, bending, cutting and other functions to reduce manual intervention.
Quick mold change: Some models are equipped with hydraulic or pneumatic quick mold change system to improve production efficiency.
Mass production: Unmanned assembly line operation can be realized with manipulator or conveyor belt.
---
4. Intelligent programming and simulation
Graphical programming: Support CAD drawing import or manual input parameters, automatic generation of processing programs.
Virtual simulation: Some high-end models have collision detection and path simulation to avoid interference in actual processing.
---
5. You're adaptable
Wide range of materials: can process stainless steel, carbon steel, copper pipe, aluminum pipe and even composite pipe.
Complex conditions: Some models are equipped with hydraulic compensation systems to deal with high-strength pipes or large wall thickness bending (such as hydraulic pipes).
---
6. Safety and stability
Protection design: equipped with grating, emergency stop button, overload protection and other safety devices.
High stability: High strength fuselage structure (such as cast iron or welded frame) reduces the impact of vibration on accuracy.
---
7. Energy saving and environmental protection
Low energy consumption design: servo motor energy saving 30%~50% than the traditional hydraulic system.
Noise control: Optimized mechanical structure to reduce operating noise (usually <75dB).
---
8. Easy maintenance
Modular design: Key components (such as guide rails and lead screws) are easy to disassemble and maintain.
Self-diagnosis function: the CNC system can monitor the equipment status in real time and prompt the fault point.
---
Typical application scenario
Automotive industry: exhaust systems, fuel lines, seat frames.
Aerospace: Hydraulic lines, engine conduits.
Home appliance furniture: armrest, bracket, decorative pipe fittings.
---
